Additional information
| Weight | 0.5 kg |
|---|---|
| Type | Wireless Without Modem |

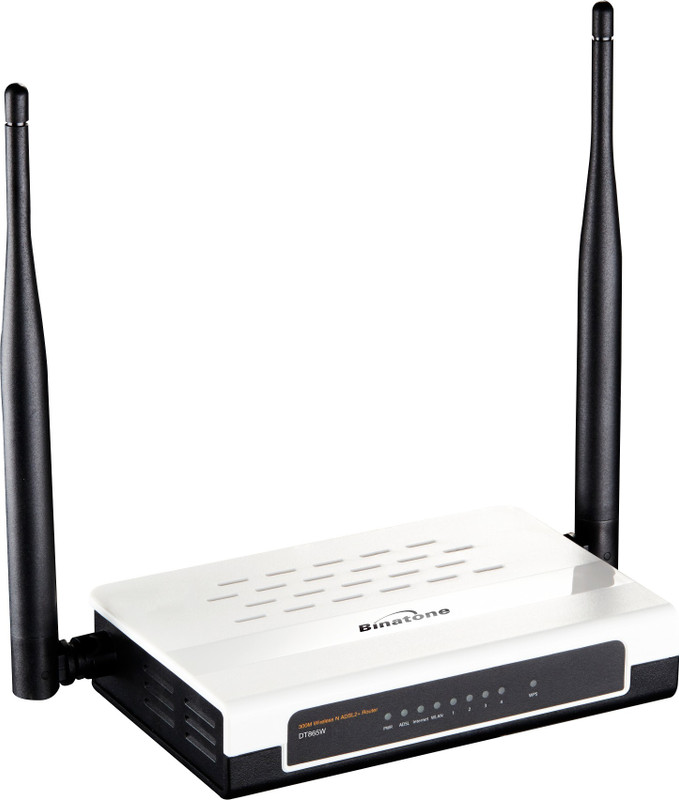

| Model | DT865W |
| Controls | Reset Button, WPS/WLAN Button, Power Socket, On/Off Switch |
| In The Box | Wireless ADSL2+ router DT865W, Power Adapter, Ethernet cable (RJ45) x1, Telephone cable ( RJ11) 2, ADSL Splitter, Quick Installation Guide |
| LED Indicator | Power, ADSL, Internet, WLAN, LAN (1, 2, 3, 4), WPS |
| Color | White |
| Brand | Binatone |
| Operating Humidity | Operating Humidity: 10% – 90% Non-condensing, Storage Humidity: 5% – 90% Non-condensing |
| Temperature | Operating Temperature: 0DegC – 40DegC, Storage Temperature: -40DegC – 70DegC degree C |
| Power Supply | 9 V DC, 0.6 A |
| Operating System | Microsoft Windows 98SE, NT, 2000, XP or Vista, 7, Mac OS, NetWare, Unix or Linux |
| Standard IEEE | IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency | 2.4 GHz |
| Frequency Band | Single Band |
| Wireless Speed | 300 Mbps |
| LAN/WAN | 10BASE-T, 100BASE-TX |
| Antennae | External |
| Number of LAN ports | 4 |
| Number of USB Ports | 5 |
| LAN | RJ-45 |
| Number of Antennae | 2 |
| Antennae Capacity | 5 dBi x 2 |
| Encryption | WPA/WPA2-PSK with TKIP/AES Encryption, 64-bit and 128-bit WEP Encryption, 64/128-bit WPA-PSK, WPA2-PSK |
| Other Security Features | IP/ Application / URL Filtering, Anti Denial of Service, Dynamic Host Configuration Protocol (DHCP), QoS |
| Firewall | SPI, NAT, MAC Filtering |
| Other Features | Chipset: ADSL – MT7505N + MT7550, Wi-Fi – MT7592E, Flash: 2 MB, SD RAM: 8 MB, RJ11, IEEE Standards: IEEE 802.3, 802.3u, ATM / PPP Protocols: ATM Forum UNI3.1/4.0 PVC – Upto 8 PVCs, PPP Over ATM (RFC 2364), PPP Over Ethernet (RFC2516), Multiple Protocol Over AAL5, Traffic Shaping (UBR/CBR), OAM F4/F5 Support, IPoA (RFC1577), Others: TCP/IP, ICMP, RIP, Static Routing, RIP v1/v2, DNS Relay, DDNS, IGMP Multicast, IGMP Snooping, Virtual Server, DMZ, UPnP, Port/Tag VLAN, IPv6, Management: Remote Management, SNMP Agent, Web Based Firmware Upgrade, Wireless Operating Range: Indoor upto 100 m, Outdoor upto 300 m, MAX RF Power: 20 dBm, Antenna Type: Default – Omni Directional, Fixed, Upstream: Upto 3.5 Mbps, Downstream: Upto 24 Mbps, Maximum Loop Length: 6 Km, Power Consumption: TBD |
| Certification | CE, FCC, Compliant with RoHS |
| VPN | VPN Pass-through (PPTP, IPsec, L2TP) |
| Height | 92 mm |
| Width | 140 mm |
| Depth | 28.5 mm |
| Service Type | Repair and Replacement |
| Covered in Warranty | Manufacturing Defects |
| Not Covered in Warranty | Physical damage and burn out cases are not entitled for warranty |
| Warranty Summary | 3 Years Warranty |
